Gigabit Ethernet Media Converter 1 x 10/100/1000 Base-TX to 1 x 100/1000 Base-FX (SFP) FCNCS-1GN-1GS

The FCNCS-1GN-1GS is a Gigabit Ethernet media converter that can convert 10/100/1000Base-TX signal to 100/1000Base-FX signal and vice versa. It comes with an RJ45 port and SFP slot. The SFP slot can support both 155Mbps and 1.25Gbps SFP transceiver selected. The transmission distance of data will depend on the type of SFP transceiver. To detect any link that is broken, the converter comes with the Link Fault Pass-through (LFP) function which allows the network links to be monitored and corrected.

Features

Application Diagram

Specifications

Standards Comply

• Standards


  IEEE802.3 10BaseT
  IEEE802.3u 100BaseT(X)
  IEEE802.3ab 1000Base-T
  IEEE802.3z 1000Base-SX/LX
  IEEE802.3x Flow control and back pressure
  IEEE802.1d Spanning Tree


Interface

• Copper Port
  Data Rate: 10/100/1000M
  Connector: RJ45


• F/O Port
  Data Rate: 155M or 1.25G
  Connector: SFP slot

Performance

• Processing Type: Store and Forward, Cut-through

• Back Bandwidth: 4Gbps
• MAC Address Size: 16Kbit
• Packet Buffer Size: 1Mbit
• Time Delay: <10us
• Frame: 16Kbytes

LED Indicators

• Indicators


  FL/A (optical link/action)
  TL/A (twisted pairs link/action)
  GE (1000M transmission rate of twisted pairs)
  GX (1000M transmission rate of fiber)
  PWR (power supply)

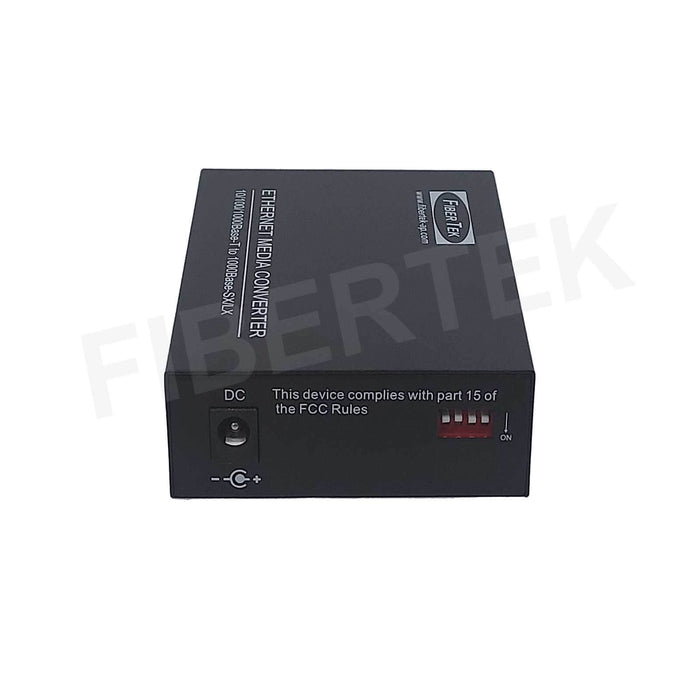

Dip-switch

• 1 – ON/OFF - Link fault pass-through Enable / Disable
• 2 – ON/OFF - 16K Jumbo frame / Store and forward
• 3 – ON/OFF - Flow control Enable / Disable
• 4 – ON/OFF - Force FX to 100Mbps / Force FX to 1000Mbps

Operating and Environmental

• Operating Temperature
  -20°C ~ 65°C

• Storage Temperature
  -40°C ~ 85°C

• Humidity
  5% ~ 95%, non-condensing


Dimension and Weight

• Dimension (mm)
  70 x 94 x 26 (WxDxH)


• Weight
  0.4kg (Including external power supply)


Power Requirement

• Power supply


  Working power: DC5V 1A

  AC Power Supply: 100V~ AC240V to 5V1A



• Power Plug
  UK type, 3 pins plug
