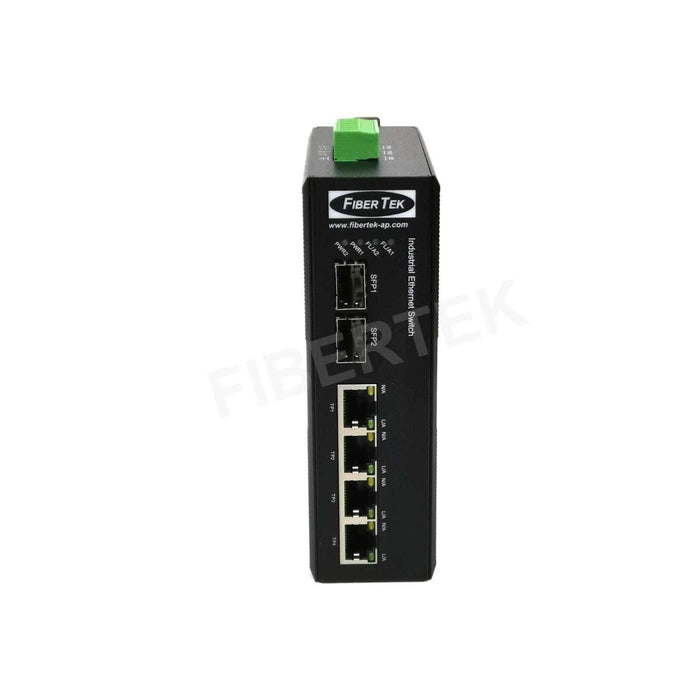

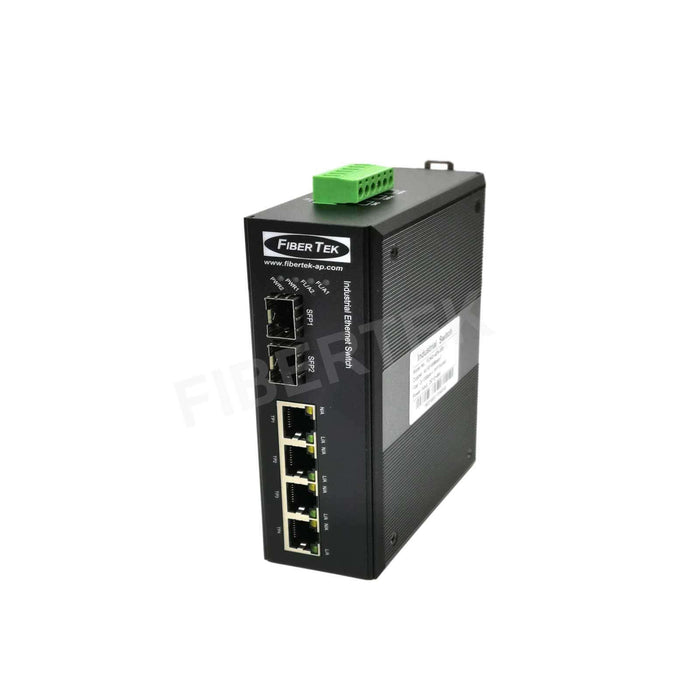

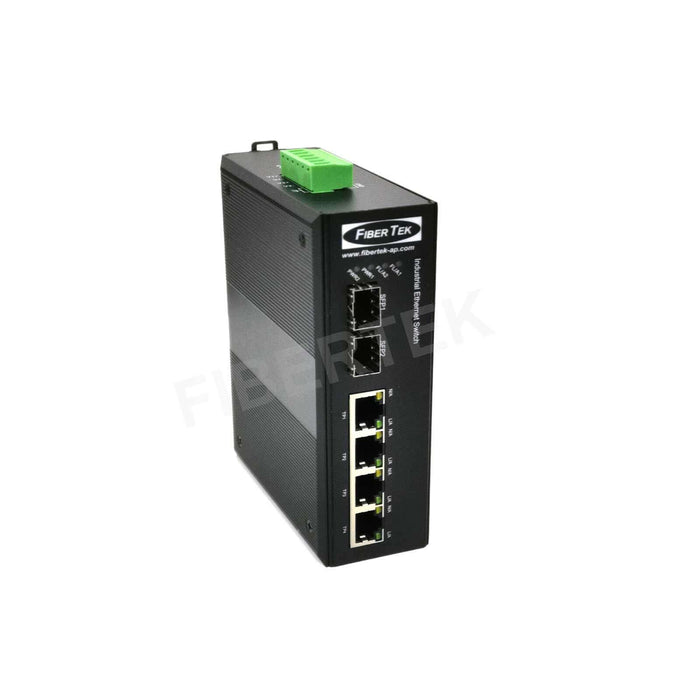

Industrial Ethernet Media Converter Fast Ethernet 4 x 10/100Base-TX to 2 x 100Base-FX (SFP) Un-managed FCNID-4EN-2ES

General Description

The FCNID-4EN-2ES is an Industrial Grade Fast Ethernet to Fiber media converter. It comes with four 10/100Base-TX RJ45 ports and two 100Base-FX SFP slots. This converter can extend the transmission distance based on the type of 155Mbps SFP transceiver selected, offering flexibility in network connectivity. It is designed to operate in temperatures ranging from -40 degrees Celsius to as high as 85 degrees Celsius, making it suitable for deployment in rugged industrial environments.

Application Diagram

Features

• Equipped with four auto MDI/MDI-X RJ45 Ethernet ports
• Supports store-and-forward working mode
• IP-40 rating protection for housing
• Wide redundant power design ranging from 12 to 58VDC
• Provides protection against power polarity reverse
• Protects against electrostatic discharge (ESD)
• Supports surge protection up to 6KV for RJ45 and power ports
• Enables seamless communication with the FCNCS series commercial grade Ethernet to Fiber Media converter

Standard Compliances

Safety: EN62368

EMC:   EN55032 Class A
           FCC part 15 Subpart B Class A
           EN 61000-3-2 Class A
           EN 61000-3-3 Class A
           EN 61000-4-2 Level 4
           EN 61000-4-3 Level 4
           EN 61000-4-4 Level 4
           EN 61000-4-5
           EN 61000-4-6 Level 3
           EN 61000-4-8 Level 4 30A/m
           EN 61000-11 Voltage dip/interruption

Reliability: IEC 60068-2-6
                 IEC 60068-2-27
                 IEC 60068-2-32

ROHS: ROHS 2.0

Specifications

Standards Comply

• Standards
  IEEE802.3, IEEE802.3u, IEEE802.3x

Interface

• Copper Port
  Data Rate: 10/100M
  Connector: RJ45 x 4


• F/O Port
  Data Rate: 155M
  Connector: SFP slot x 2

Performance

• Processing Type: Store and Forward



• Back Bandwidth: 1.2Gbps

• MAC Address Size: 2Kbit

• Packet Buffer Size: 768Kbit

LED Indicators

• Indicators

  PWR1: ON=Power Connected

  PWR2: ON= Power Connected

  FL/A1: ON= Fiber Connected; Active=Data Transmitting

  FL/A2: ON= Fiber Connected; Active=Data Transmitting

Operating and Environmental

• Operating Temperature
  -40°C ~ 85°C

• Storage Temperature
  -40°C ~ 85°C

• Humidity
  5% ~ 95%, non-condensing


Dimension and Weight

• Dimension (mm)
  138*107*45mm ( HXDxW)

• Weight
  0.48kg (weight for the device without packaging)



Housing

• Material
  Aluminium Alloy IP40 Rated



Power Requirement

• Input Voltage: 12~58 VDC, redundant power inputs

• Power Consumption: ≤5W
• Connector: Terminal Block



Installation

• can be DIN-Rail mounted or wall-mounted (with wall mounting kit)
