Side view of DPPY12 BK Series with 8 ports LC Quad Duplex Singlemode Adapters

DIN Rail Fiber Optic Patch Panel DPPY12 with LC Quad Duplex Adapters (BK Series)

by FiberTek Pte Ltd
USD $90.00 - USD $130.00
USD $90.00 (Excl. GST)
USD $98.10 (Incl. GST)
USD $90.00 - USD $130.00
USD $90.00 (Excl. GST)
USD $98.10 (Incl. GST)

General Description

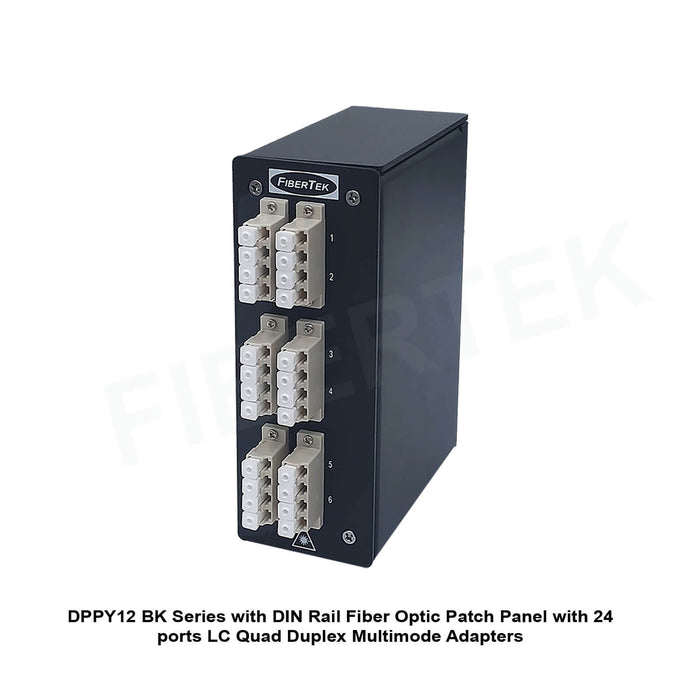

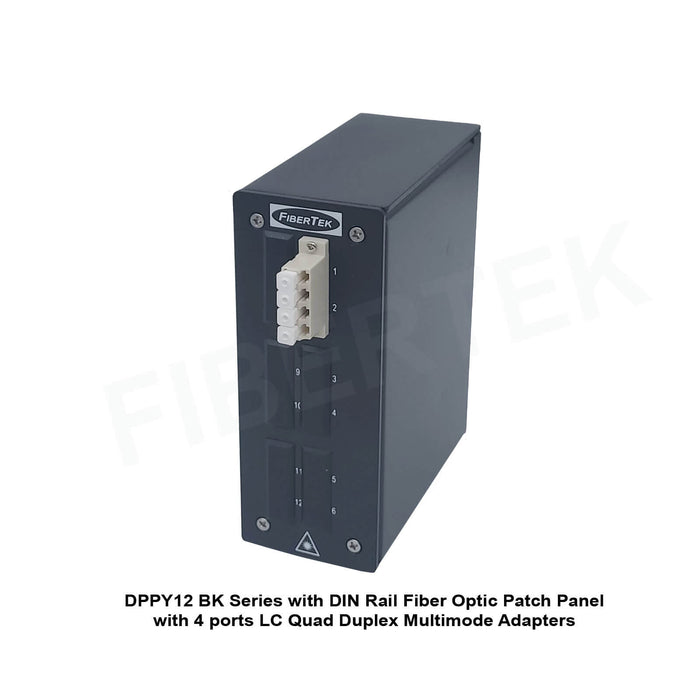

The DPPY12 BK Series LC Quad Duplex DIN Rail Fiber Optic Patch Panel comes pre-loaded with either Singlemode or Multimode (OM1, OM2, OM3, or OM4) LC Quad Duplex fiber optic adapters. It can neatly and securely house up to 24 optical fibers in a compact space with a width of only 54mm. This fiber patch panel has a swing-out design that reduces the amount of assembly/disassembly time required, as less screw/unscrew work is needed. Moreover, it can be mounted vertically or horizontally, providing greater flexibility in network connectivity.


Mounting of the DIN Rail clip

DIN Rail Mounting Vertical and Horizontal for DPPY12 BK LC Quad Duplex

Features

  • Compact size to be DIN Rail mount to provide space-saving
  • Double stackable, fixed position splice holder which can support up to 12 splices per holder
  • Comes with 2 x M22 cable gland to cater for cable with an outer diameter that ranges from 8mm to 14mm (± 1mm)

Specifications

  • Dimension : 140 mm Height  x 54mm Width x 103 Depth

Dimension of DPPY12 BK LC Quad Duplex DIN Rail Patch Panel

  • Material: Powder Coated Aluminium
  • Weight:  0.4 kg (when fully loaded)

Additional Product Information: All DIN Rail fiber optic patch panels will be loaded with LC Quad Duplex adapters, 2 x Splice holders (S-HO06Z), 2 x M22 cable glands, 40mm splice sleeves and 3 x cable clips. Those optical ports not loaded with adapters will be fitted with blank plugs.



Accessories of DPPY12 BK Series LC Quad Duplex DIN Rail Patch Panel
