DIN Rail Fiber Optic Patch Panel DPPY12 with 4 ports LC Duplex Singlemode Adapters

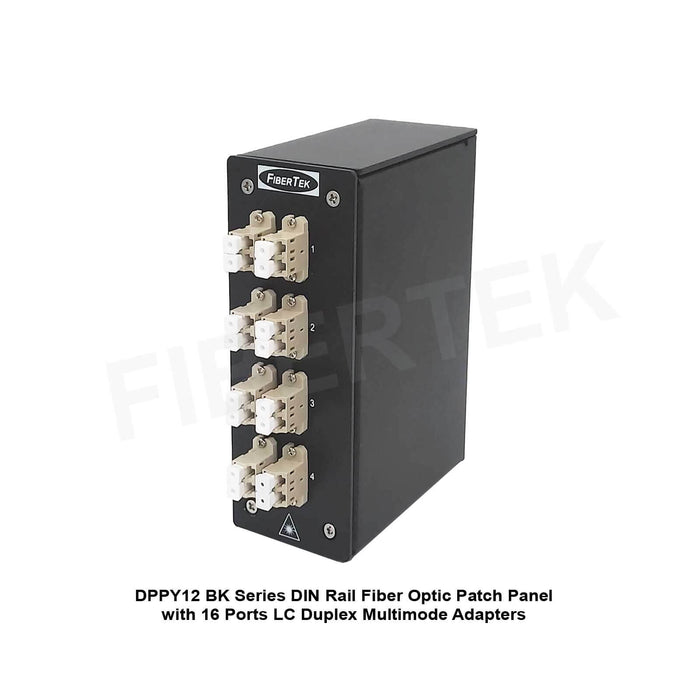

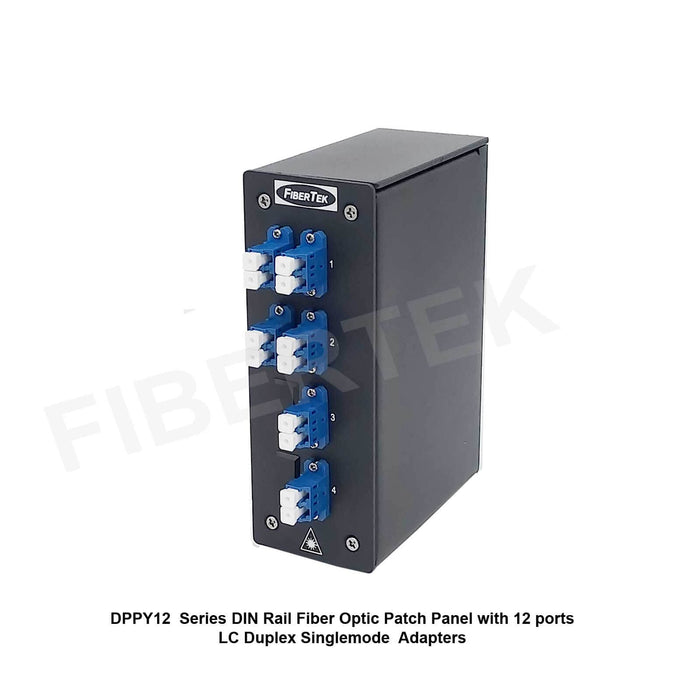

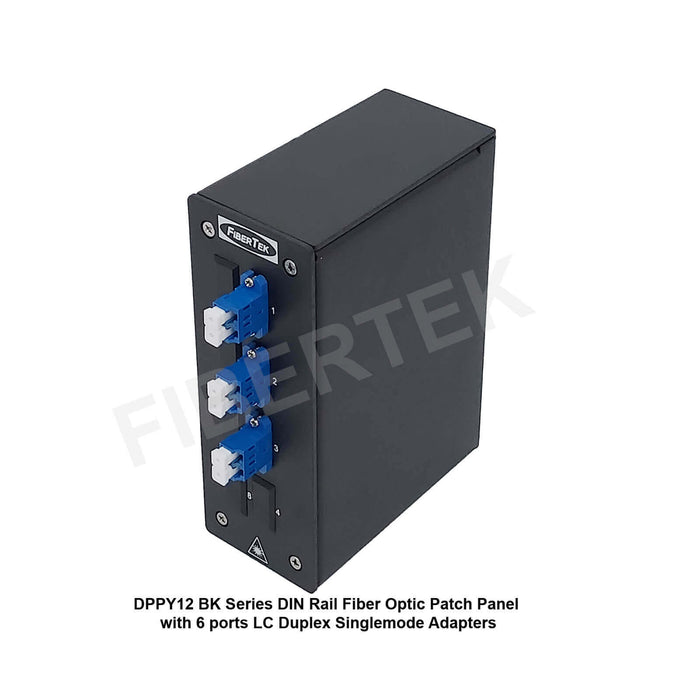

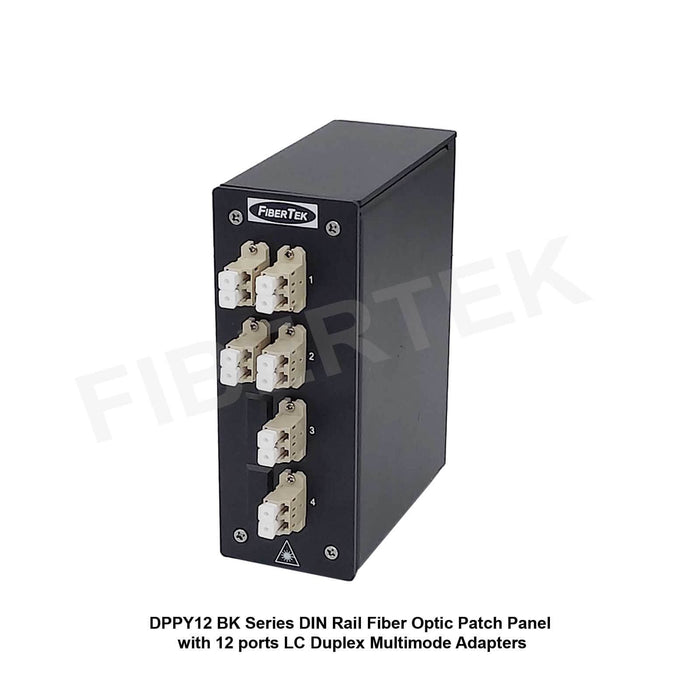

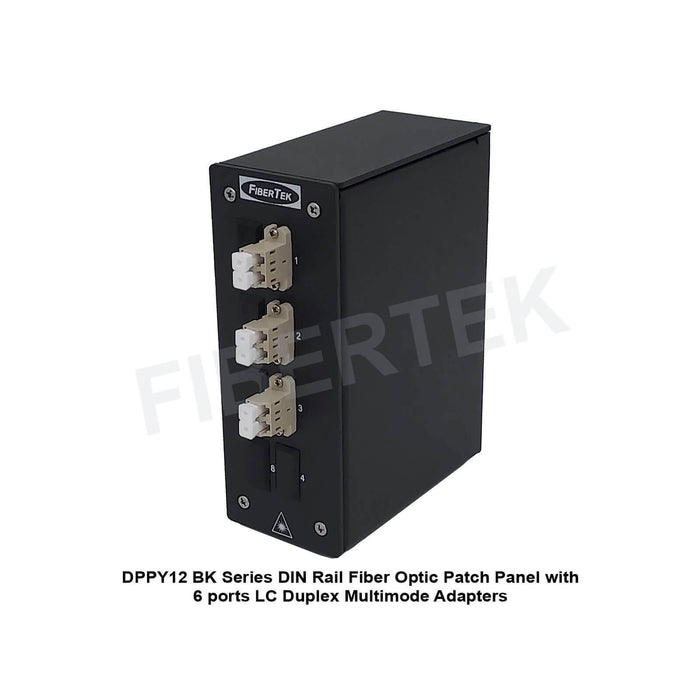

DIN Rail Fiber Optic Patch Panel DPPY12 with LC Duplex Adapters (BK Series)

by FiberTek Pte Ltd
USD $74.00 - USD $94.00
USD $74.00 (Excl. GST)
USD $80.66 (Incl. GST)
USD $74.00 - USD $94.00
USD $74.00 (Excl. GST)
USD $80.66 (Incl. GST)

General Description

The DPPY12 BK Series DIN Rail Fiber Patch Panel with LC Duplex Adapters will be installed with the required number of LC Duplex type of fiber optic adapters. When the patch panel is fully loaded, it can securely store up to 16 optical fibers that come from two optical cables, as it has two cable entries at the bottom of the panel.

This patch panel offers flexibility in deployment as it can be mounted horizontally or vertically on the DIN Rail track and installed in the same server rack cabinet as the other fiber optic equipment.



Mounting of the DIN Rail clip

DIN Rail Mounting Vertical and Horizontal for DPPY12 BK LC Quad Duplex

Features

  • can be DIN-Rail mounted to provide space-saving (compact size and lightweight)
  • double stackable, fixed position splice holder which can support up to 12 splices per holder
  • available with 2 cable entries that can be fitted with 2 x M22 cable glands (suitable for cables with an outer diameter size that ranges from 8mm to 14mm (± 1mm))

Specifications

  • Dimension : 140 mm Height  x 54mm Width x 103 Depth

Specifications of DPPY12 BK Series LC Duplex Adapters

Dimension diagram for DPPY12 Series DIN Rail Fiber Patch Panel

  • Material: Powder Coated Aluminium
  • Weight:  0.4 kg (when fully loaded with adapters)

Additional Product Information: All DIN Rail fiber optic patch panels will be loaded with LC Duplex adapters, 2 x Splice holders (S-HO06Z), 2 x M22 cable glands, 40mm splice sleeves and  3 x cable clips. Those optical ports not loaded with adapters will be fitted with blank plugs.

Accessories of DPPY12 BK Series LC Quad Duplex DIN Rail Patch Panel
